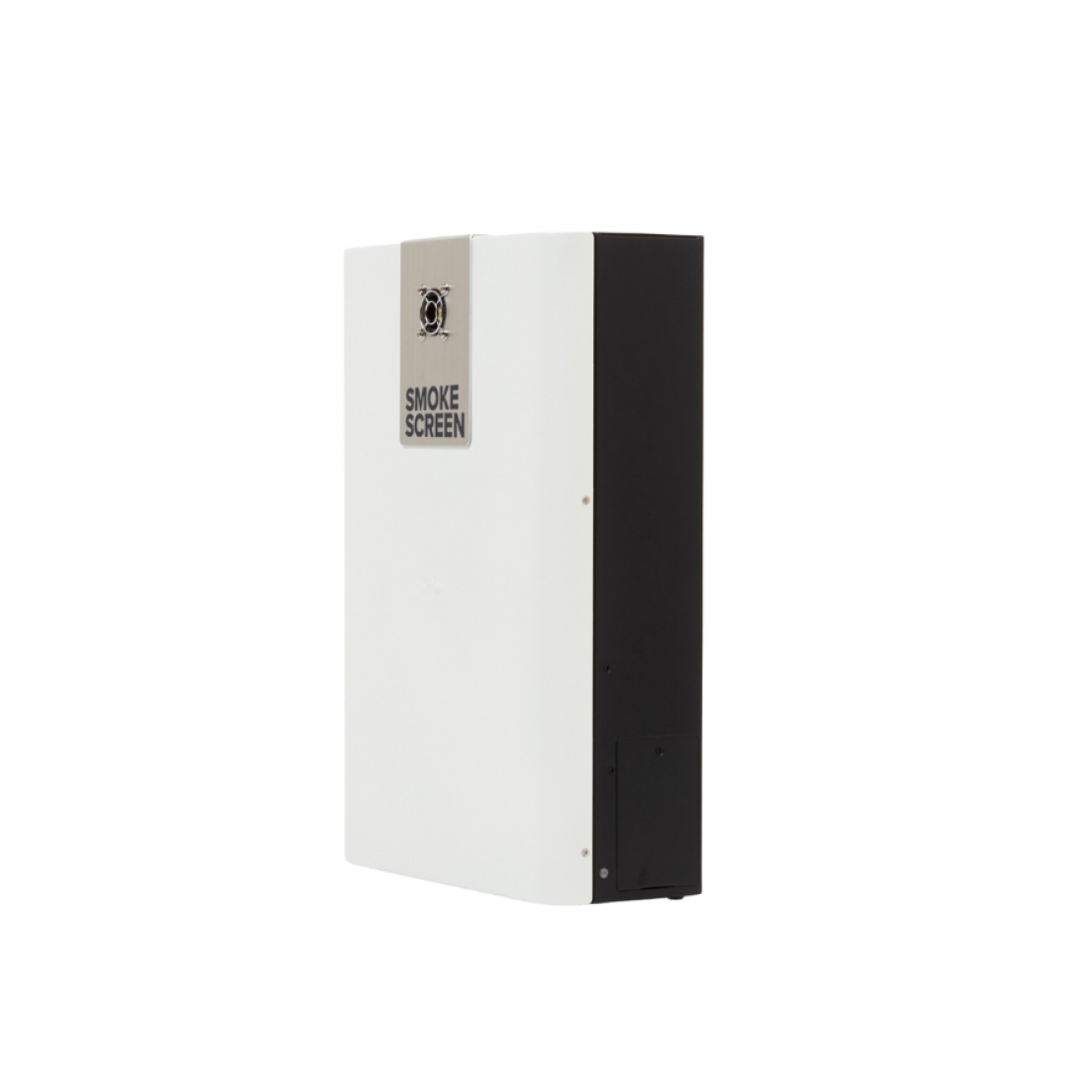

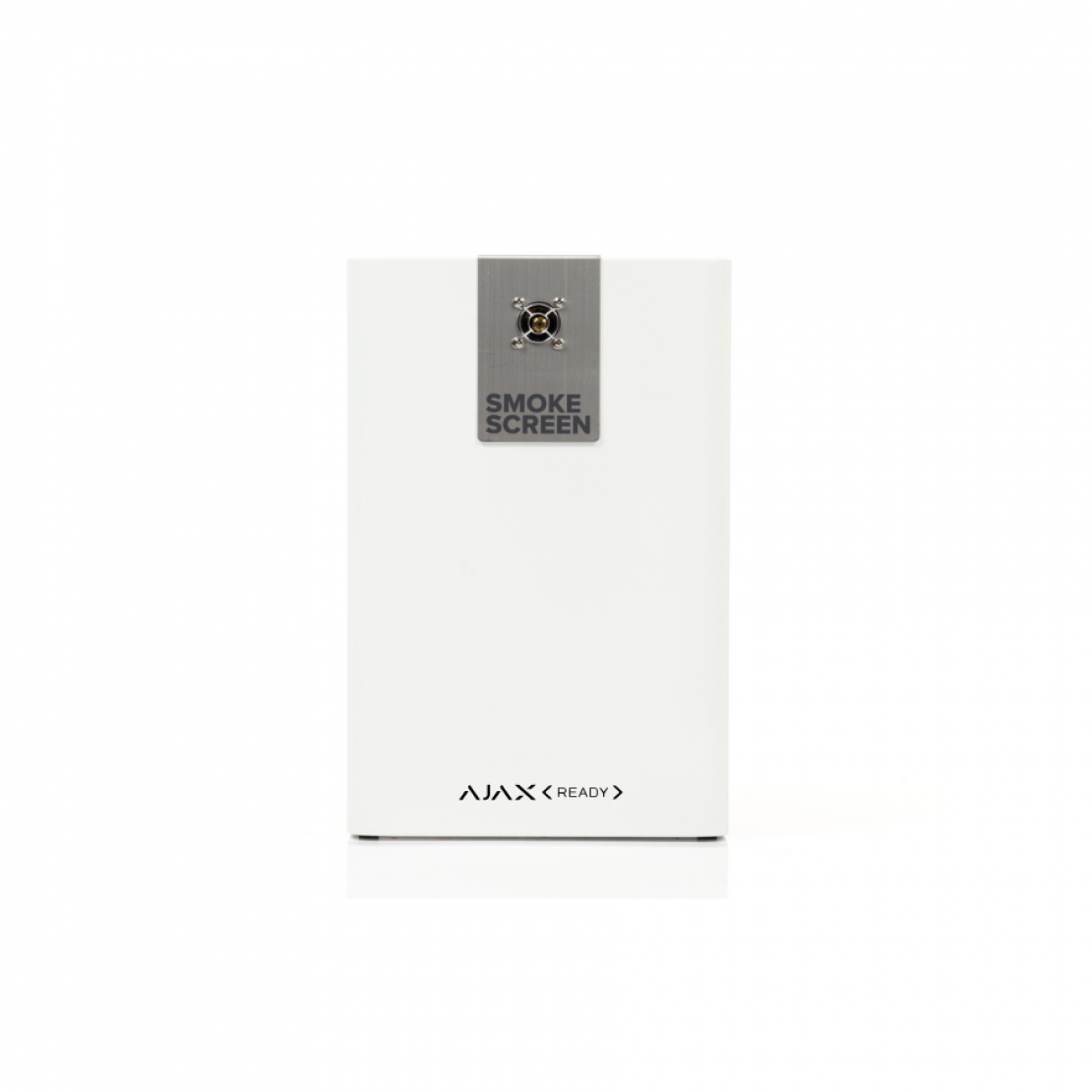

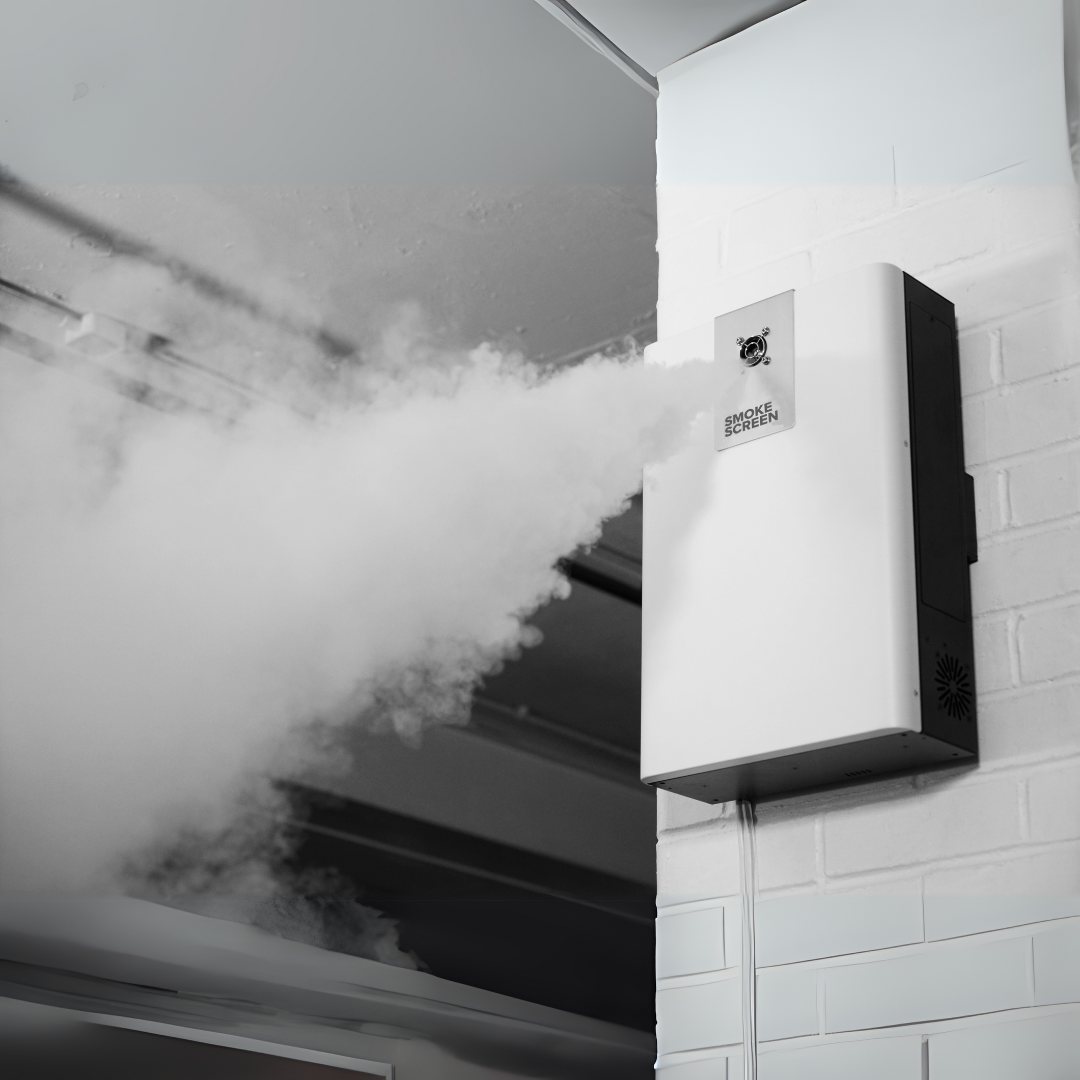

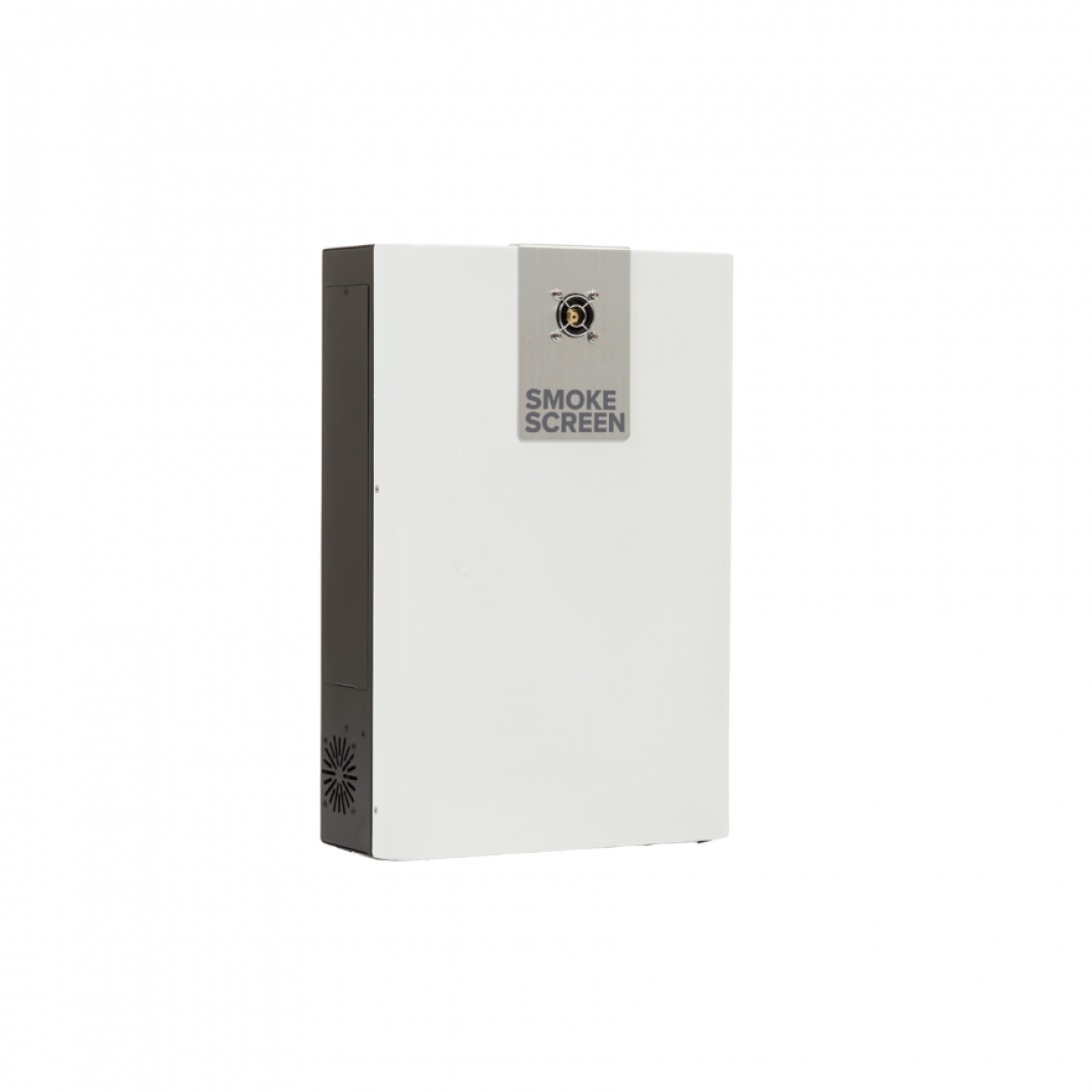

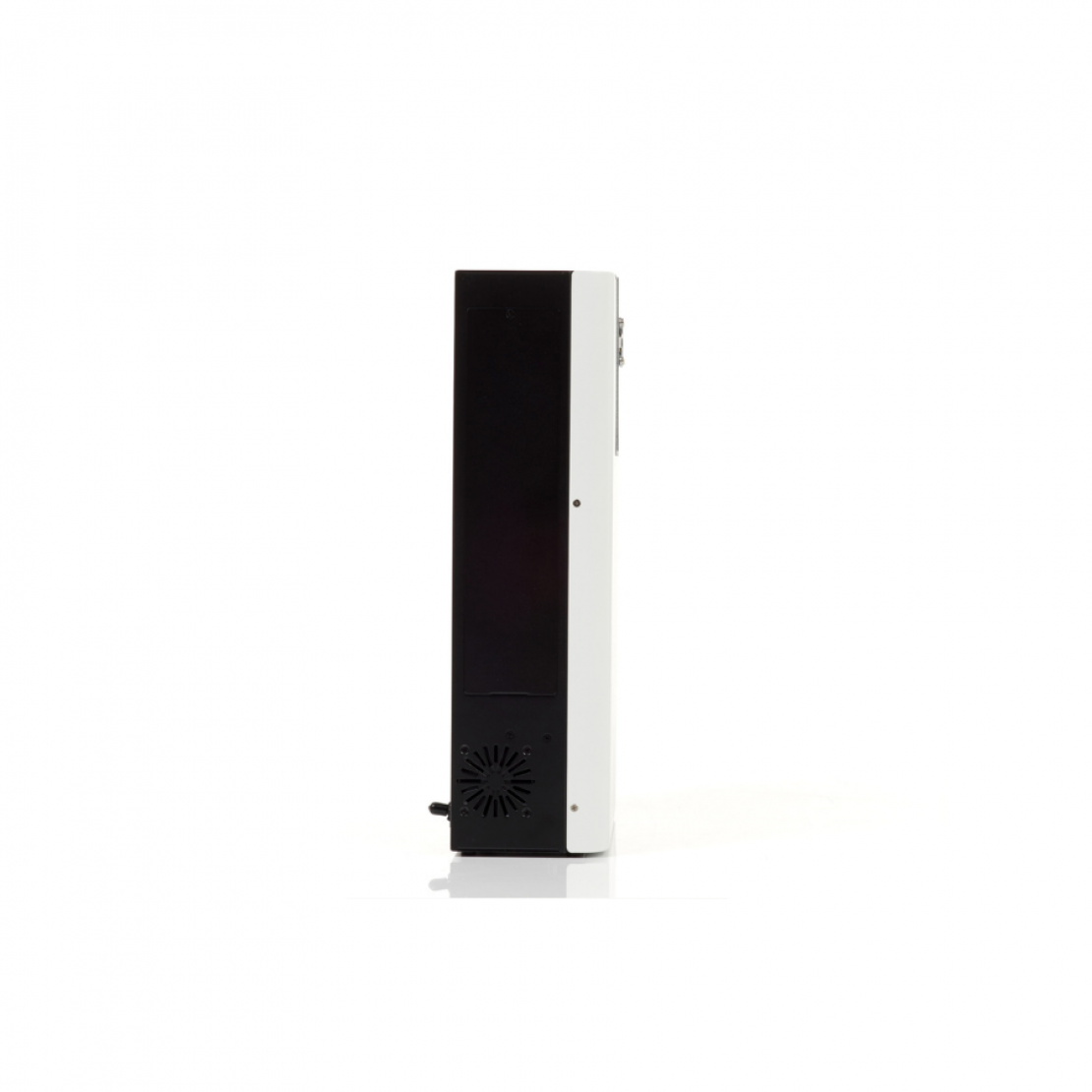

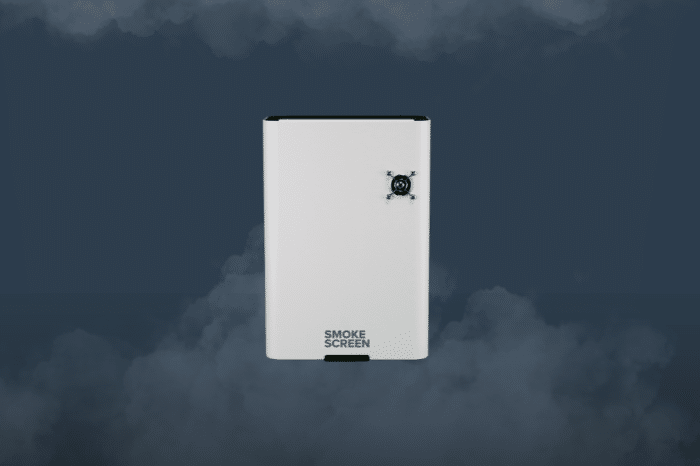

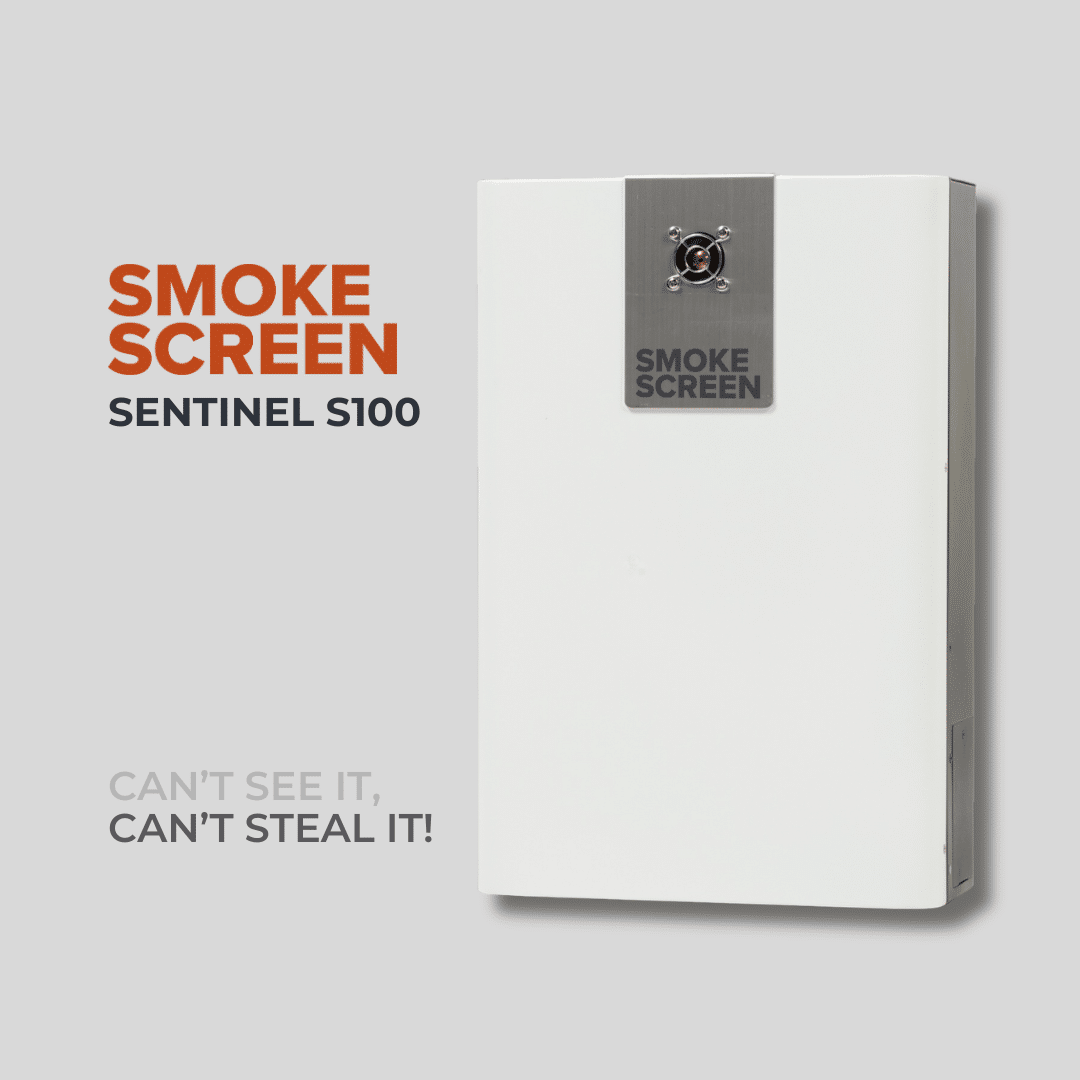

Sentinel S100

The Sentinel S100 was the most powerful generator in the range until it was overtaken by the twin pump S150. This generator still provides an incredibly long first burst of security fog. Huge areas can be protected by the S100. Additionally, the large mass of steel acts as an extra energy store in the event of a mains power cut. Specially designed insulation, intelligently monitored “swift-fit” fluid, and flexible integration and control add up to make the S100 an exceptionally versatile generator protecting assets from ATM lobbies to warehouses.

• Competitive pricing, easy installation, low running costs and 5 year Service contract available – including free fluid re-fills and annual maintenance check.
• Simple integration into existing alarm systems.
• Powerful anti-raid burst (Turbo Mode) and multi-nozzle options.
• Dry fog guaranteed to leave no residue and won't damage your goods.
• Persistent fog production – small particle size means the smoke will last up to 40 minutes unventilated.
• Supports automatic re-firing via screen-sensor technology.
• Energy-saving mode.
• Battery back-up for off-mains operation (min. 1.5 hours).
• Now compatible with Sentinel+ IP cards and the Sentience monitoring platform.
• Compliant with International (IEC62642:8) and European Standards (EN50131:8).


Find out how this Smoke Screen can be integrated with your security alarm system.

• 4 inputs and 7 outputs.
• LCD status display and on-board event log.

• Rugged and compact steel casing in white/black.
• Environmental pack for installation in confined spaces with elevated ambient temperatures.
• Machined steel heater block allows use of most persistent smoke chemical.

• EN50131:8 and IEC62642:8.
• CNPP Rating: Class I Category 30.

• 1,000ml/5,000ml fluid system.

• 46.5(H)* x 13(D) x 31(W) cm *add 0.5cm for feet.
• Weight: 18kg (pre-install), 23kg (total).

The Smoke Screen Sentinel range has been designed and manufactured for permanent installation either as a fully integrated part of an intruder alarm system or as a stand-alone system. The range comprises some of the most advanced security fog generators in the world.

Sentinel S100 - Installation and Operation Manual V5 [pdf]

Sentinel S100 - Datasheet [pdf]

If you have any questions regarding our products or require technical support, please call our experts at Concept Smoke Screen and we will do our very best to help.
